General Description
Using BCD process, the AS1786 is designed for high performance unipolar detection hall-effect application, such as home appliances, rotor position sensing, brushless DC motor etc. The hall IC integrated an on-chip hall voltage generator for magnetic sensing, a comparator that amplifiers the hall voltage, hall sensor with dynamic offset cancellation system, an pull-up resistance, and a Schmitt trigger to provide switching hysteresis for noise rejection, and a voltage regulator for operation with supply voltage of 2.8V to 28V. AS1786 is designed to respond to South poles. White the magnetic flux density (B) is larger than operate point (BOP), the output will be turned on (low), the output is held until the magnetic flux density (B) is lower than release point (BRP), then turn off (high). The device is available in SIP-3L and SOT23-3L Package and is rated over the -40°C to 150°C. the package is RoHS compliant.

Features
 High Performance BCD Process Tech.  Input Voltage Range : 2.8V to 28V Resistant to physical stress
 Unipolar Latch Operation
 High Sensitivity Hall Sensor
 High Chopping Frequency
 Magnetic Sensitivity (typical)
BOP=150Gauss, BRP=120Gauss
 Need Pull-up Resistance
 Reverse Voltage Protection: -24V Small Solution Size
 RoHS Compliant

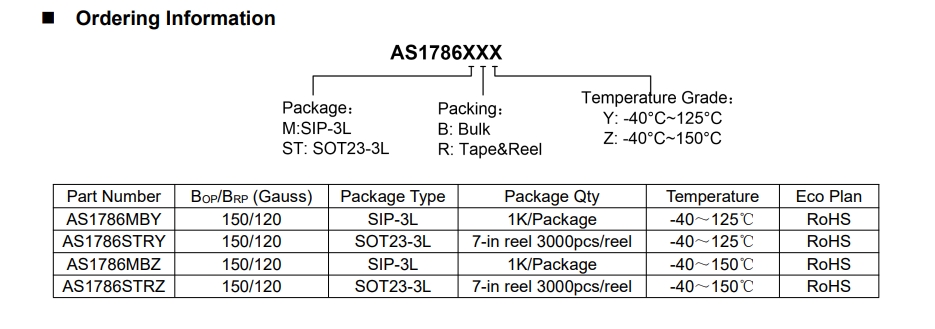

 SIP-3L and SOT23-3L Packages
 -40℃ to +150 ℃Temperature Range
