General Description
This is a high sensitivity type of ANGSemi hall element using evaporated GaAs film. It performs effectively in low magnetic fields due to the high sensitivity. The input and output resistance values are suitable for transistor circuits.

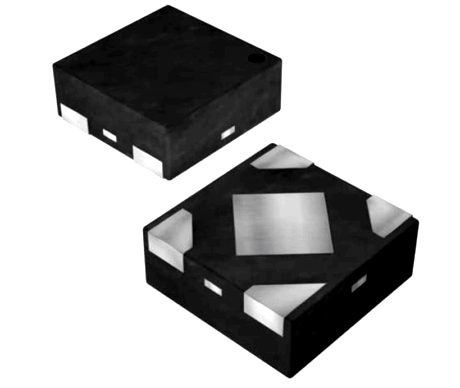

The device is available in small DFN0408-4L package and is rated over the -40°C to 125°C. The all packages are RoHS and Green compliant.
Features
● High Linearity
● High sensitivity GaAs Hall Element
● Superior Temperature Stability
● Shipped in Package tape Real
● Differential Analog output
● Output Hall Voltage: 36mV to 54mV (IC=5mA)
● RoHS & Green Compliant● Thin DFN0408-4L Packages
● -40℃ to +125 ℃ Temperature Range
Applications
● Magnetic Field Measurement
● OIS Motor
● Brushless DC Motor
● Current Sensor
● Other small precision motors● DVD, CD-ROM, floppy disk drive
● Non-contacting, rotation sensors, current sensors
● Magnetic flux sensors other than those above
